NetBorder High Density VoIP Gateway Models
Sangoma’s NetBorder High Density VoIP Gateways offer concurrent use of ISDN, CAS (R2), SIP, T.38 fax protocols all in one package, reducing footprint and increasing.
8 E1/T1 VoIP Gateway
• 8 ports E1/T1 (or 240 simultaneous calls)
• Telco grade echo cancellation
• TDM protocol support: SS7, PRI, MFCR2
• VoIP protocols: SIP V2/RFC3261
• Transcoding support:
* G.711
* G.723.1
*
G.726
* iLBC
* G.729AB
*
GSM
* G.722
* AMR
* G.722.1
• Fully featured webgui for configuration, monitoring and diagnostics

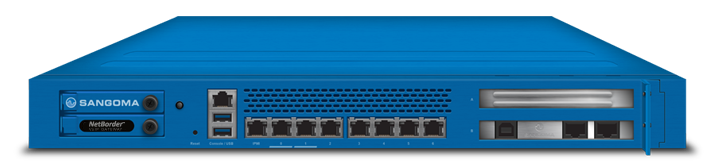

16 or 32 E1/T1 VoIP Gateway
• 16 or 32 ports E1/T1 (or 480 simultaneous calls)
• Telco grade echo cancellation
• TDM protocol support: SS7, PRI, MFCR2
• VoIP protocols: SIP V2/RFC3261
• Transcoding support:
* G.711
* G.723.1
*
G.726
* iLBC
* G.729AB
*
GSM
* G.722
* AMR
* G.722.1
• Fully featured webgui for configuration, monitoring and diagnostics
NetBorder Gateway Features
| Echo Cancellation | VoIP Protocols | PSTN Protocols | Call Routing |
| • DTMF detection and generation: * RFC2833 tone relay * In-band * SIP info • G.168-2002 with 128ms tail |
• SIP V2 / RFC3261 • SCTP RFC 2960 |
• Primary Rate ISDN (PRI) • E1: Euro-ISDN, CAS MFCF2 • T1: Q.931, NI2, 4ESS, 5ESS, DSM-100 |
• Configurable and extendable XML-based dial plan and routing rules |
| Capacities |
Debugging | Audio Codecs | Management & Configuration |
| • Flexible 8 port appliance * 8 E1/T1 ports, or 240 channels • 16 port appliance * 16 E1/T1 ports, or 480 channels • 32 port appliance * 32 E1/T1 ports, or 960 channels |
• Dedicated Browser interface for capturing full RTP media and signaling information • Onboard browser-based PCAP tracing, signalling and media – wireshark compatible • Large onboard storage capacity for long term tracing |
• G.711 • G.723.1 • G.726 • iLBC • G.729AB • GSM • G.722 • AMR • G.722.1 • Fax Support; T.38 Fax Relay |
• Web GUI • Command line interface • Detailed logs with con gurable le size and autorotation • SNMP • Radius • Call detail records in XML format • Remote firmware upgrade |
NetBorder Gateway Specifications (Interfaces)
| PSTN Interface | Network Interface |
| • 8 port appliance * 8 E1/T1; One 8-port telephony interface (RJ45 ports) • 16 port appliance * 16 E1/T1; Either two 8-port telephony interface (RJ45 ports) or one 16-port telephony interface (16-port interface requires 68-pin SCSI type interface) • 32 port appliance * 32 E1/T1: Two 16-port telephony interfaces (16-port interface requires 68-pin SCSI type interface) |
• 8 port appliance * 5x LAN 10/100/1000 BaseT Ethernet ports * IPV4, IPV6 * 1x IPMI remote management Interface * 2x USB ports * 1x console port • 16/32 port appliance * 7x LAN 10/100/1000 BaseT Ethernet ports * IPV4, IPV6 * 1x IPMI remote management Interface * 2x USB ports * 1x console port |
Hardware
| 8 Port Appliance |
16 Port Appliance | 32 Port Appliance |
| • 1U: 430mm (W) x 305mm (D) x 45mm (H) • 7.2kgs (16lbs) • 60W universal AC power |
• 1U: 430mm (W) x 470mm (D) x 45mm (H) • 15kgs (33lbs) • 250W universal AC power |
• 1U: 430mm (W) x 470mm (D) x 45mm (H) • 15kgs (33lbs) • 250W universal AC power |
