NetBorder SS7 VoIP Gateway Models
Scalable and flexible, Sangoma’s NetBorder SS7 VoiP Gateways offer concurrent use of ISDN, SS7 CAS (R2), SIP, and SIGTRAN signaling protocols all in one package, eliminating the need for third party media gateway controllers or protocol converters lowering operation and maintenance costs.

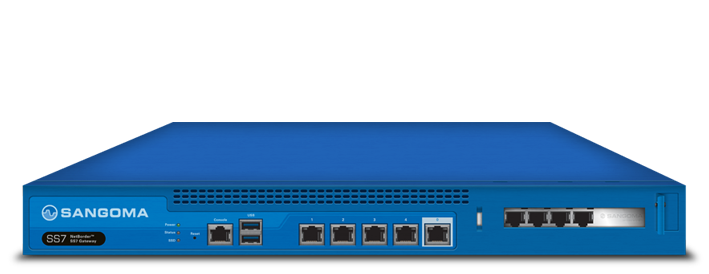

1-8 E1/T1 SS7 VoIP Gateway
• 8 ports E1/T1
• Telco grade echo cancellation
• TDM protocol support: SS7, PRI, MFCR2
• VoIP protocols: SIP V2/RFC3261, SIGTRAN M2UA RFC 3331, SCTP RFC 2960, Megaco/H248
• Transcoding support:
* G.711
* G.723.1
*
G.726
* iLBC
* G.729AB
*
GSM
* G.722
* AMR
* G.722.1
• Fully featured webgui for configuration, monitoring and diagnostics

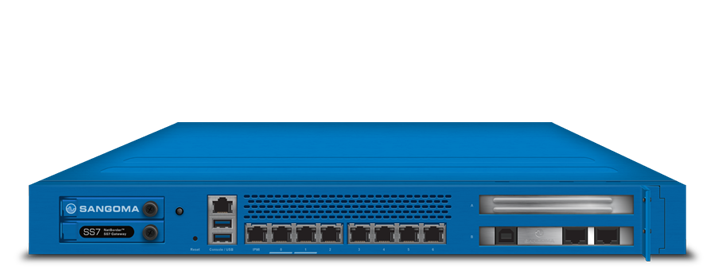

8-32 E1/T1 SS7 VoIP Gateway
• 8-32 ports E1/T1
• Telco grade echo cancellation
• TDM protocol support: SS7, PRI, MFCR2
• VoIP protocols: SIP V2/RFC3261, SIGTRAN M2UA RFC 3331, SCTP RFC 2960, Megaco/H248
• Transcoding support:
* G.711
* G.723.1
*
G.726
* iLBC
* G.729AB
*
GSM
* G.722
* AMR
* G.722.1
• Fully featured webgui for configuration, monitoring and diagnostics

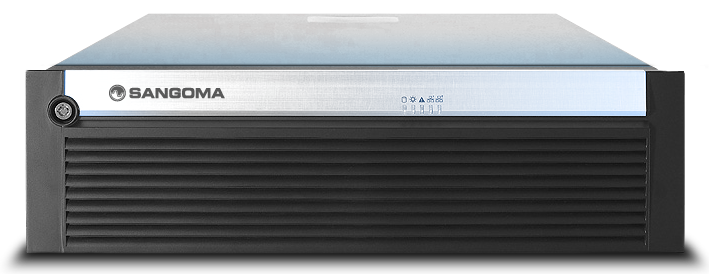

High Density 64 E1/T1 SS7 VoIP Gateway
• 64 port E1/T1
• Telco grade echo cancellation
• TDM protocol support: SS7, PRI, MFCR2
• VoIP protocols: SIP V2/RFC3261, SIGTRAN M2UA RFC 3331, SCTP RFC 2960, Megaco/H248
• Transcoding support:
* G.711
* G.723.1
*
G.726
* iLBC
* G.729AB
*
GSM
* G.722
* AMR
* G.722.1
• Fully featured webgui for configuration, monitoring and diagnostics
SS7 Gateway Features
| Capacities | VoIP Protocols | PSTN Protocols | Audio Codecs |
| • Flexible 8 port appliance * Up to 8 E1/T1 ports, or 240 channels • 8-32 port appliance * Up to 32 E1/T1 ports, or 960 channels • 64 port appliance * Up to 64 E1/T1 ports, or 1920 channels • Software platform * Up to 64 E1/T1 ports, or 1920 channels |
• SIP V2 / RFC3261 • SCTP RFC 2960 • SIGTRAN M2UA RFC 3331 • Megaco / H.248 |
• SS7-ISUP * ITU, ANSI, Bellcore, UK, China, India, France and Russian variants • Up to 16 A or F signaling links & linksets • Up to 16 originating & destination point codes • ISUP relay for larger distributed network configurations • E1: Euro-ISDN, CAS MFCF2 • T1: Q.931, NI2, 4ESS, 5ESS, DSM-100 |
• G.711 • G.723.1 • G.726 • iLBC • G.729AB • GSM • G.722 • AMR • G.722.1 • Fax Support; T.38 Fax Relay |
| Echo Cancellation |
Debugging |
Call Routing |
Management & Configuration |
| • DTMF detection and generation: * RFC2833 tone relay * In-band * SIP info • G.168-2002 with 128ms tail |
• Dedicated Browser interface for capturing full RTP media and signaling information • Onboard browser-based PCAP tracing, signalling and media – wireshark compatible • Large onboard storage capacity for long term tracing |
• Configurable and extendable XML-based dial plan and routing rules | • Web GUI • Command line interface • Detailed logs with con gurable le size and autorotation • SNMP • Radius • Call detail records in XML format |
SS7 Gateway Specifications ( Interfaces )
| PSTN Interface | Network Interface |
| • Flexible 8 port appliance / 8-32 port appliance * 4 E1/T1; One 4-port telephony interface (RJ45 ports) * 8 E1/T1; One 8-port telephony interface (RJ45 ports) * 16 E1/T1; Either two 8-port telephony interface (RJ45 ports) or one 16-port telephony interface (16-port interface requires 68-pin SCSI type interface) * 32 E1/T1: Two 16-port telephony interfaces (16-port interface requires 68-pin SCSI type interface) • 64 port appliance * 64 E1/T1; Four 16-port telephony interfaces (16-port interface requires 68-pin SCSI type interface) |
• Flexible 8 port appliance * 5x LAN 10/100/1000 BaseT Ethernet ports * IPV4, IPV6 * 1x IPMI remote management Interface * 2x USB ports * 1x console port • 8-32 port appliance * 7x LAN 10/100/1000 BaseT Ethernet ports * IPV4, IPV6 * 1x IPMI remote management Interface * 2x USB ports * 1x console port • 64 port appliance * 4x LAN 10/100/1000 BaseT Ethernet ports * IPV4, IPV6 * 1x IPMI remote management Interface * Video: 1x VGA port |
Hardware
| Flexible 8 Port Appliance |
8-32 Port Appliance | 64 Port Appliance |
| • 1U: 430mm (W) x 305mm (D) x 45mm (H) • 7.2kgs (16lbs) • 60W universal AC power |
• 1U: 430mm (W) x 470mm (D) x 45mm (H) • 15kgs (33lbs) • 250W universal AC power |
• 2U: 723mm (W) x 347mm (D) x 89mm (H)) • 40.8kgs (90lbs) • 1000W universal AC power |
